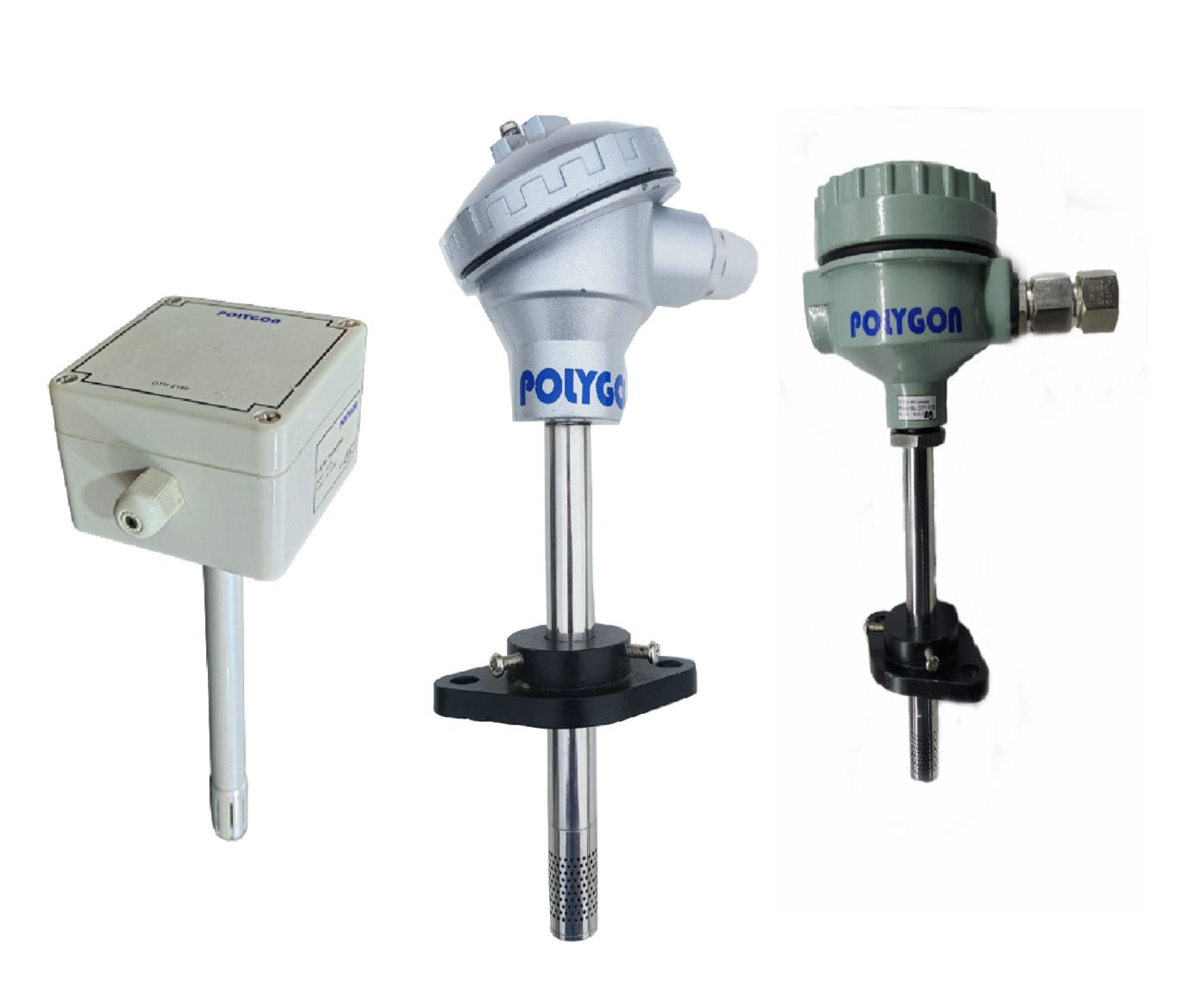

Temperature & RH Sensor
The T & RH Sensor comes with its unique features of SS probe, Perforated SS Filter & IP67 sensing element with PTFE shield.

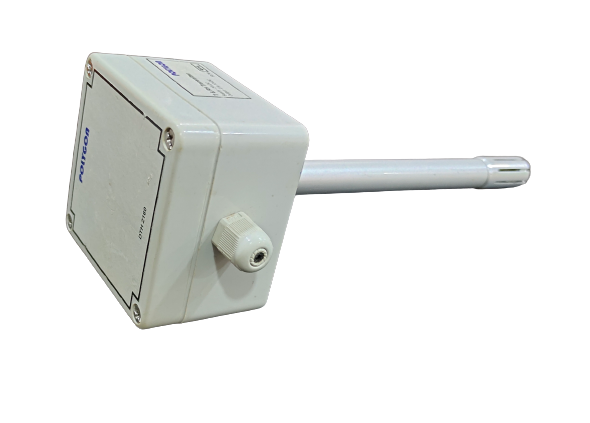

T&RH Sensor is available with duct-mounted and wall-mounted features for use in HVAC applications to sense the Temperature & RH. One variant for measurement of T & RH of outdoor air is also available with SS304 mounting bracket and radiation shielding.
The Sensor works efficiently under various atmospheric conditions & is suitable for high temperature, aggressive & dusty gas media applications.
One model is also available
Supply Voltage:
24VDC
Basic sensing element:
Programmed IC Chip
Mounting:
Duct mounting with SS probe or Aluminium with 150mm standard Insertion depth
Wall Mounting
(Refer Selection Table)
Terminal Housing:
Die cast Aluminum housing
ABS Housing
FLP-LM6 Alloy
(Refer Selection Table)
Probe Length:
100mm
150mm (standard)
200mm
(Refer Selection Table)
Measuring Range :
For Temperature: Selectable
1 : 0 to 50˚C
2 : 0 to 100˚C
3 : (-35) to (35)˚C
4 : (-40) to (125)˚C
For RH : 0 - 100%
Signal Output :
T: 0 - 10V DC/4-20mA
RH: 0 - 10V DC/4-20mA
Accuracy:
±1% FS. For Temperature
±2% FS. For RH
Ambient Conditions for use as well as storage:
Temperature: -40 to 125°C.
Humidity: 0 to 90 %RH Non-condensing
